Ceramic Series

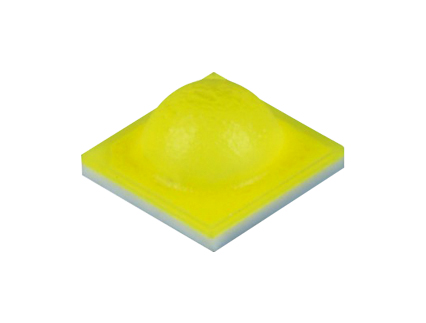

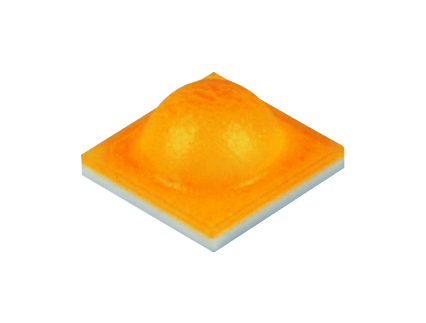

Ceramic 3535
Size:3.5*3.5*1.93mm
Features:
• Using high thermal conductivity ceramic substrate
• High lumen output and high luminous efficiency
• High Color Quality with CRI Min. 80
• SDCM<3
• Low Thermal Resistance
• Good performance on over-current drive
• Through the lm-80 certification
Applications:
• Indoor lighting
• Outdoor lighting
• Automotive
• Architectural lighting
• Industrial lighting(High/Low Bay)
• Portable lighting
- Specification
- Test report
- Application Manual
